Bracket Pro Serie® 60-SD – Hamilton-T1 Ventilator Mounting System for EMS & Critical Care Transport

The Bracket Pro Serie® 60-SD is a robust single-disc mounting system engineered to securely hold the Hamilton-T1 ventilator from Hamilton Medical® during demanding EMS, critical care transport, and flight operations. Built from high-density aluminum with a durable silver-anodized finish, this Hamilton-T1 ventilator mounting system delivers proven safety, flexible installation options, and easy access to all device components across ground, air, hospital, and military environments.

Built for Safe Hamilton-T1 Ventilator Transport

The Bracket Pro Serie® 60-SD is tested in compliance with SAE J3043 (26 G) and FAA-FAR-DOT 27.561 and 27.562 for flight and is designed to comply with EN 1789 (10 G). This high-impact resistance helps protect the Hamilton-T1 ventilator during sudden stops, collisions, and turbulence, reducing the risk of damage while supporting patient and crew safety.

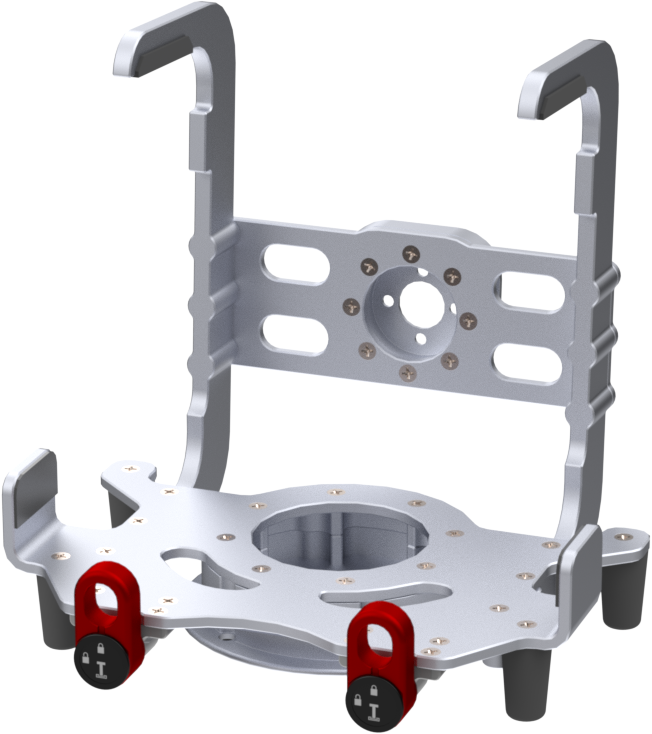

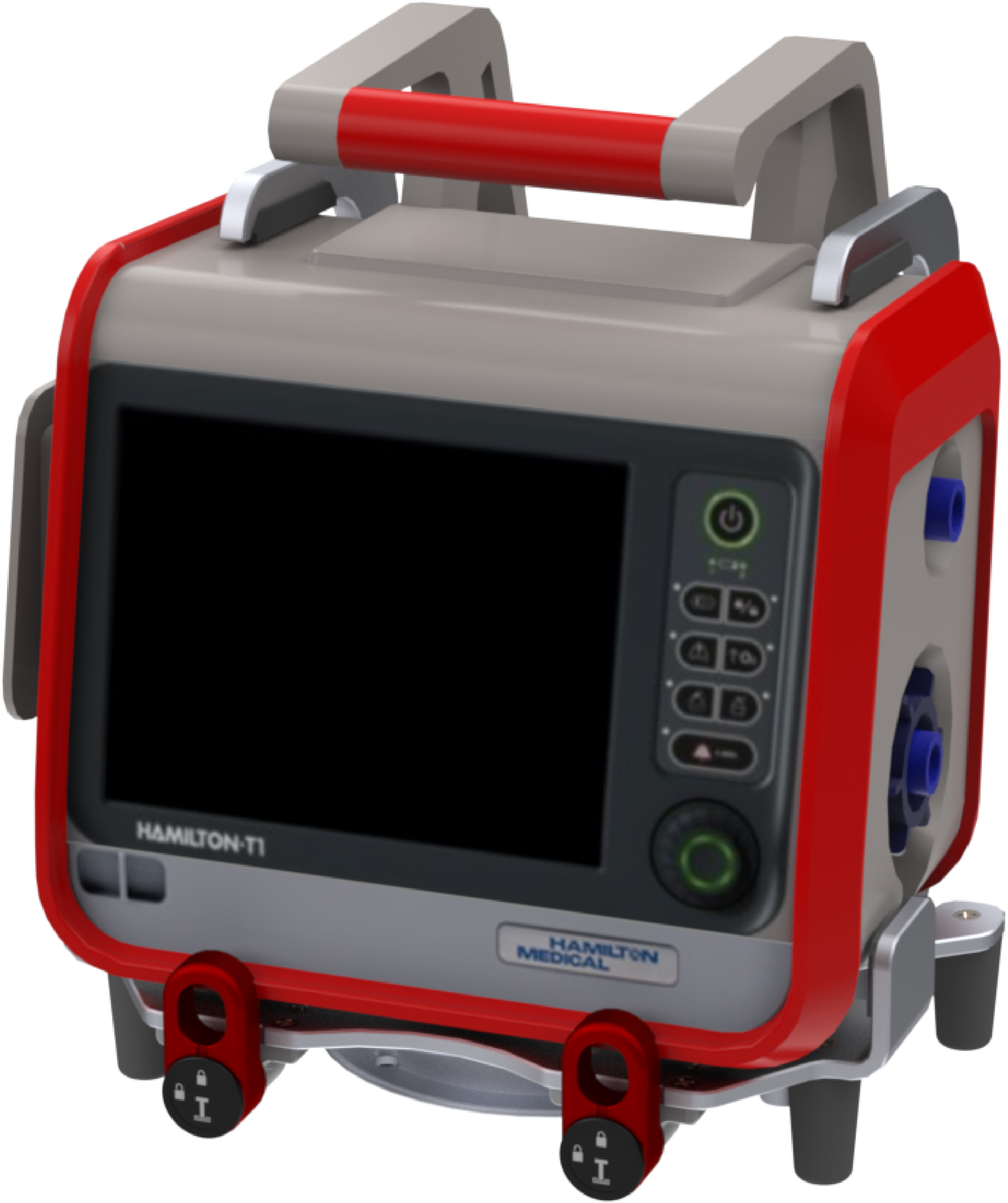

A dual locking system with red quick-release mechanisms secures the ventilator using two upper arms and lateral blockers. Crews can trust the device to stay locked in place during transport yet remove it quickly when needed for bedside use or equipment changes.

360° Access with No Modifications to the Ventilator

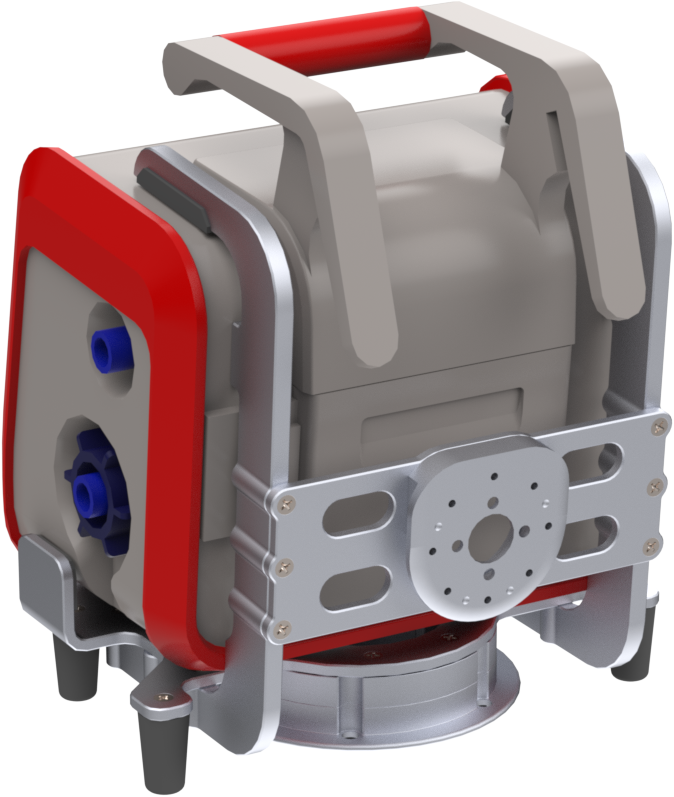

This Hamilton-T1 ventilator mounting system is designed to protect both safety and device integrity. The bracket secures the ventilator without any screws or attachments into the medical device housing, avoiding permanent modifications and helping maintain manufacturer warranty and structural integrity.

The Bracket Pro Serie® 60-SD allows full access to all connectors, accessories, and controls with no interference to components, wires, or tubing. When installed on Technimount’s Standard Surface Base, it offers 360° rotation so providers can easily position the Hamilton-T1 ventilator for optimal visibility and access in tight patient compartments.

Flexible Mounting for EMS, Flight, Hospital & Military

The Bracket Pro Serie 60 SD is built for mixed fleets and multi-environment operations. It provides flexible mounting options for the Hamilton-T1 ventilator across:

  • Ground EMS and critical care transport: stretchers, cots, and ambulance interiors
  • Fire and rescue vehicles: rescue trucks and fire apparatus
  • Air medical transport: floor mount configurations approved for flight
  • Hospital and clinic environments: transport stretchers and in-hospital movement
  • Military and tactical medical units: rugged, mission-ready mounting

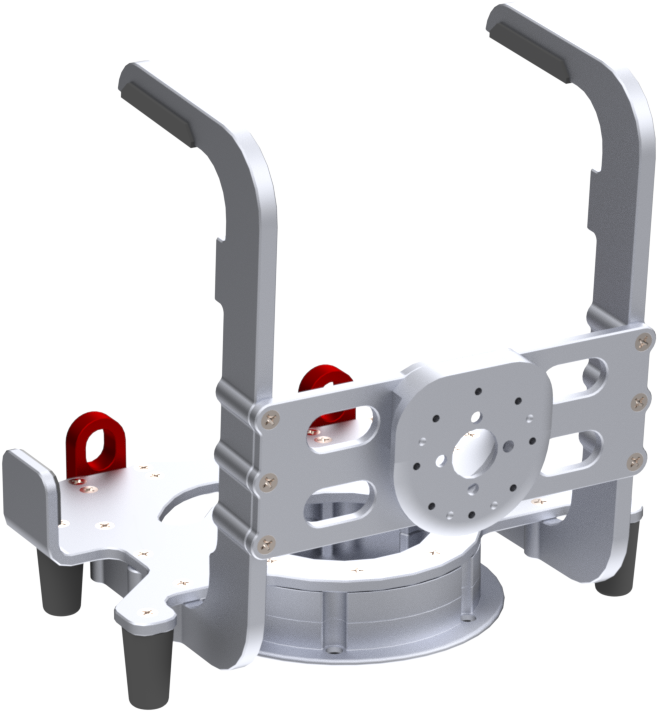

The standard bottom disc is compatible with Technimount’s Standard Surface Base, Safety Arm System for Stryker cots (PowerPro – XT and Mx-Pro), and Floor Mount for flight applications, enabling consistent deployment of the Hamilton-T1 ventilator across different vehicles and platforms.

Engineered for Durability, Cleanability & Compliance

The Bracket Pro Serie® 60-SD is designed to withstand harsh EMS and critical care conditions while supporting stringent infection control protocols. The main assembly and standard bottom disc are built from Aluminum 6061-T6, with a 304 stainless steel insert in the disc for added strength. A silver-anodized finish provides corrosion resistance and long-term durability.

The mounting system is resistant to biological fluids and compatible with quaternary-type disinfectants, making cleaning fast and effective between calls. It complies with RoHS 3 environmental regulations and is rated for use in temperatures from −35 °C to 45 °C, ensuring reliable performance in a wide range of climates and operating environments.

Safety & Efficiency in Transport

The Bracket Pro Serie® 60-SD is designed to reduce equipment damage and streamline workflows during EMS and critical care transport. By securely mounting the Hamilton-T1 ventilator:

  • The risk of the device becoming a projectile during impacts or turbulence is reduced
  • Crews spend less time managing loose equipment and more time focused on patient care
  • Ventilator positioning becomes more predictable and repeatable across units and vehicles

The combination of certified impact resistance, dual locking systems, and fast-release mechanisms helps ensure both safety and operational efficiency for teams working in high-stress environments.

Key Specs

  • Product name: Bracket Pro Serie 60 SD
  • Application: Single-disc mounting system for the Hamilton-T1 ventilator on surfaces and cots/stretchers in emergency vehicles
  • Compatible device: Hamilton-T1 ventilator from Hamilton Medical®*
  • Usage environments: EMS/CCT (ground and flight), hospital/clinic, military
  • Construction – main assembly: Aluminum 6061-T6
  • Construction – standard bottom disc: Aluminum 6061-T6 with 304 stainless steel insert
  • Finish: Silver-anodized (main assembly and bottom disc)
  • Chemical resistance: Resistant to biological fluids and quaternary-type disinfectants
  • Environmental compliance: RoHS 3
  • Operating temperature: −35 °C to 45 °C
  • Certifications:
    • Tested to SAE J3043 (26 G)
    • Tested to FAA-FAR-DOT 27.561 and 27.562 (flight)
    • Designed to comply with EN 1789 (10 G)
  • Mounting compatibility: Technimount Standard Surface Base, Safety Arm System for Stryker cots (PowerPro – XT and Mx-Pro), Floor Mount (flight)
  • Retention system: Two upper arms with red quick-release mechanisms and lateral blockers
  • Approx. overall dimensions: 11.5 in (W) x 10.2 in (D) x 11.5 in (H)
  • Approx. weight: 5.8 lb
