Frazer Type 3 EMS Ambulance

The Frazer Type 3 EMS is a custom-built ambulance designed for Advanced Life Support (ALS) and rescue services that need tight maneuverability, independent power, and a comfortable, efficient patient care environment. Mounted on a cutaway van chassis with a low floor height and available in 12 ft and 14 ft modules, this Type 3 ambulance makes loading, treatment, and transport easier for crews on every call.

Built for Tight Streets & Heavy-Duty EMS Work

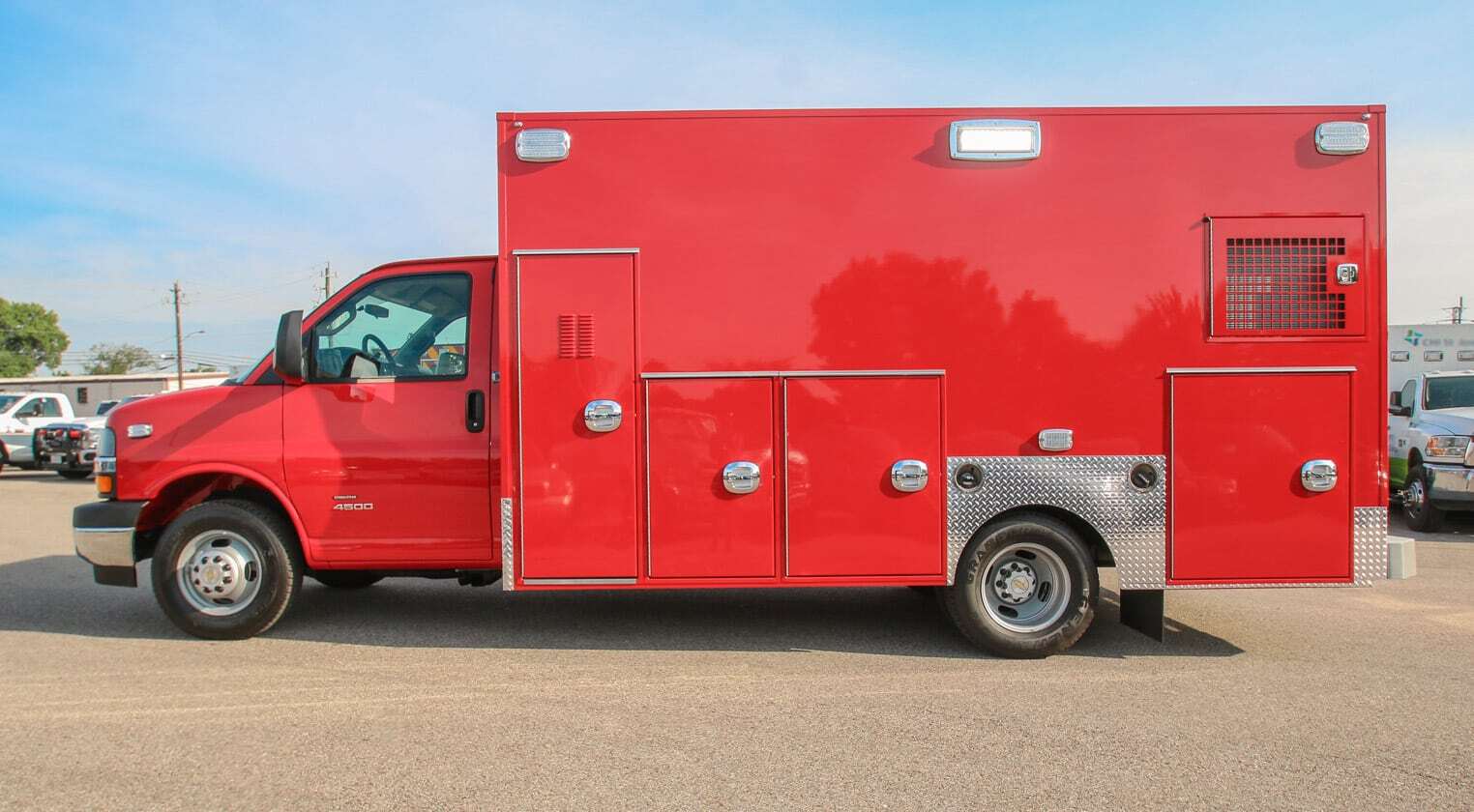

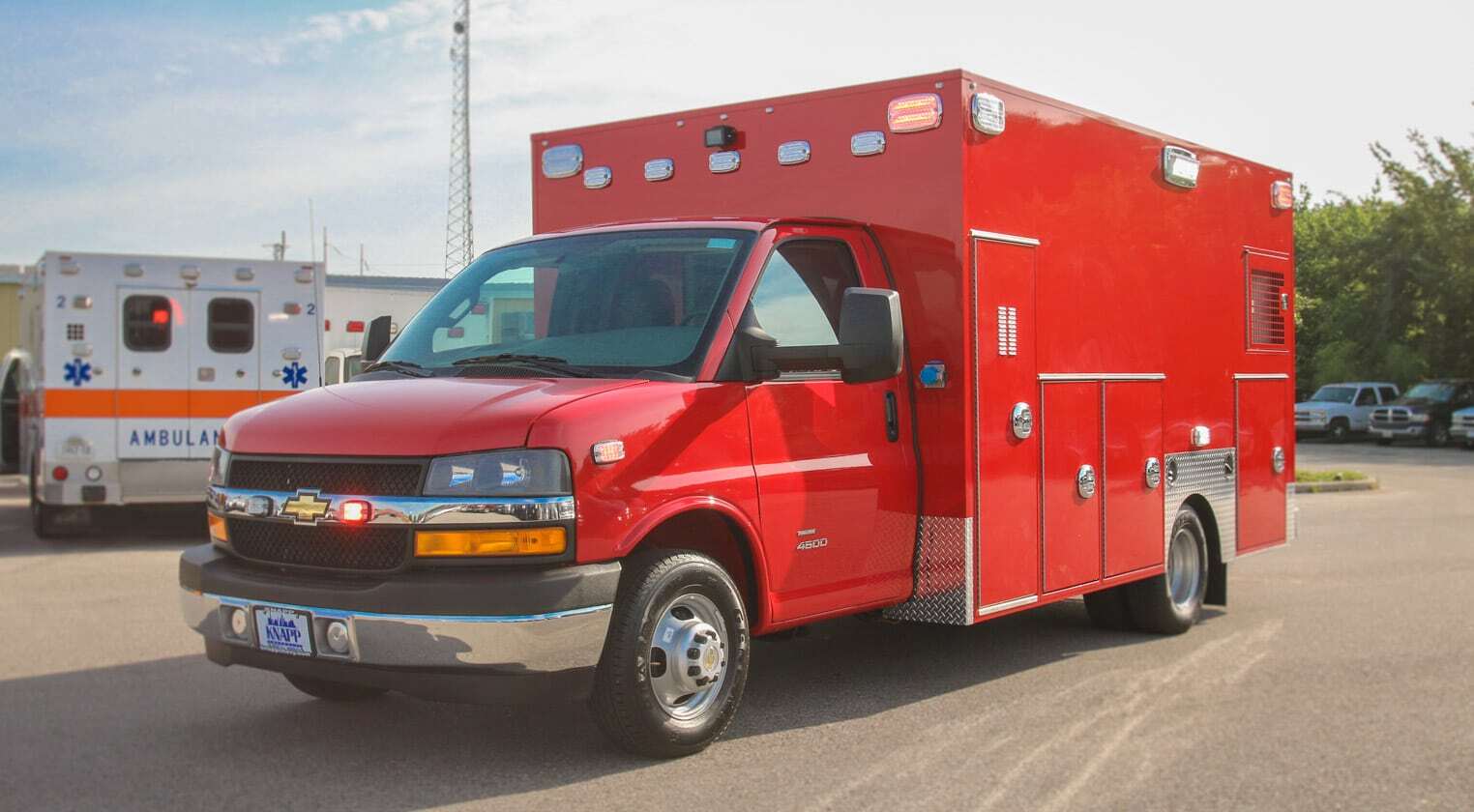

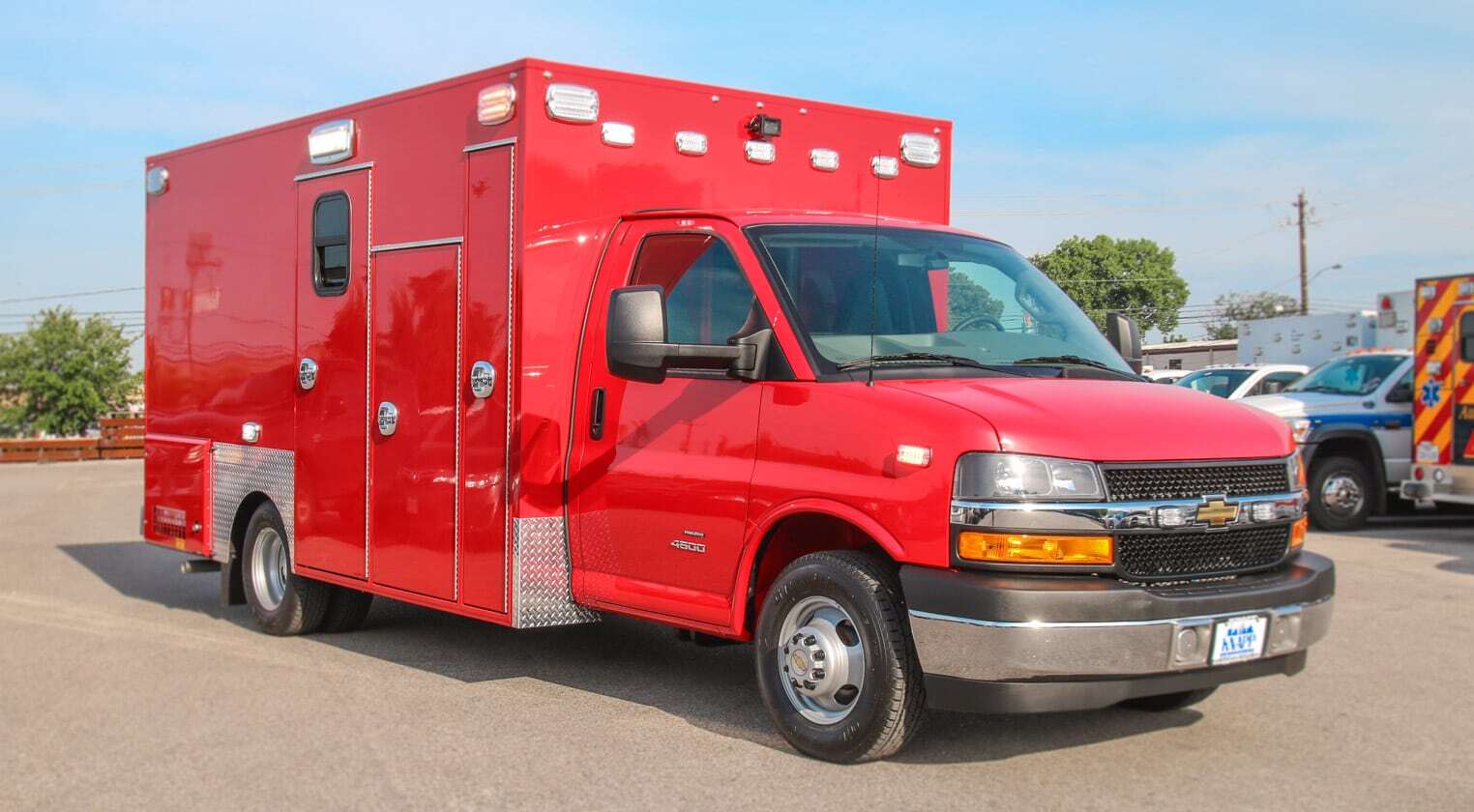

The Frazer Type 3 EMS is mounted on a cutaway van chassis that delivers a shorter turning radius and lower frame rails than traditional truck chassis. This gives crews better control in congested urban areas, tighter hospital bays, and narrow stations.

The lower floor height makes it easier to load cots and heavy equipment and eliminates the need for air-suspension lowering features, reducing complexity and maintenance. The result is a highly maneuverable, EMS-focused vehicle that’s built for daily frontline use.

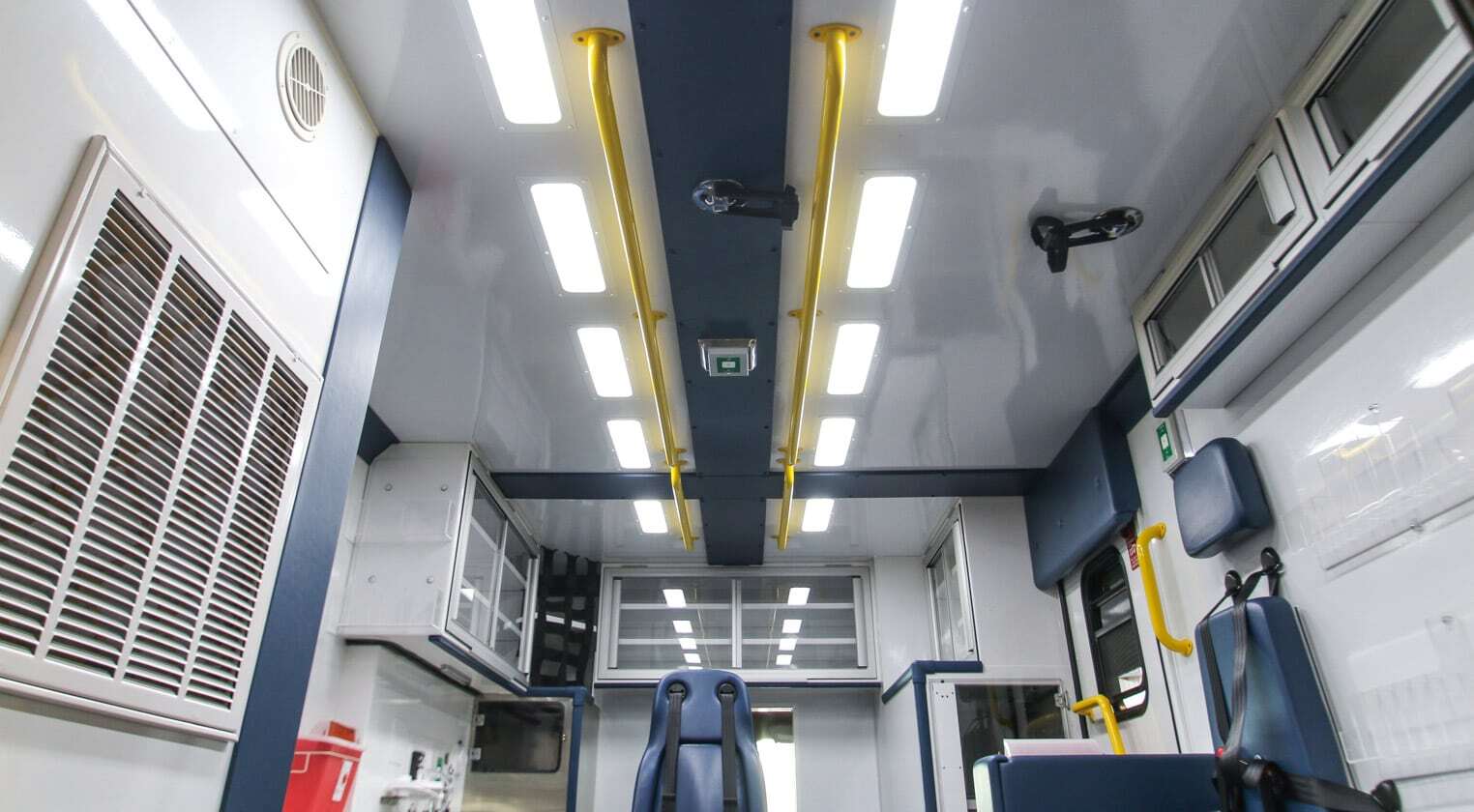

Spacious, Efficient Patient Care Interior

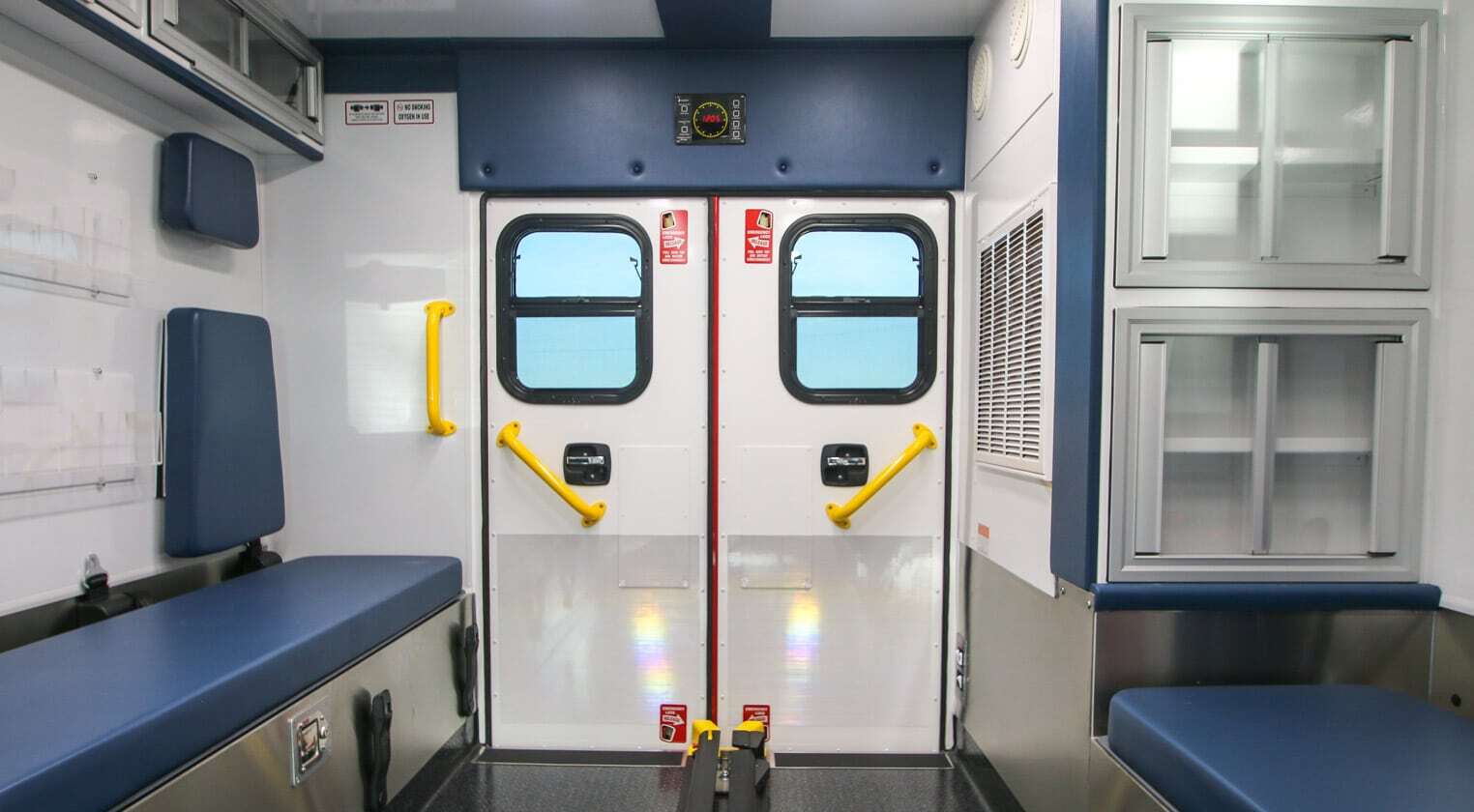

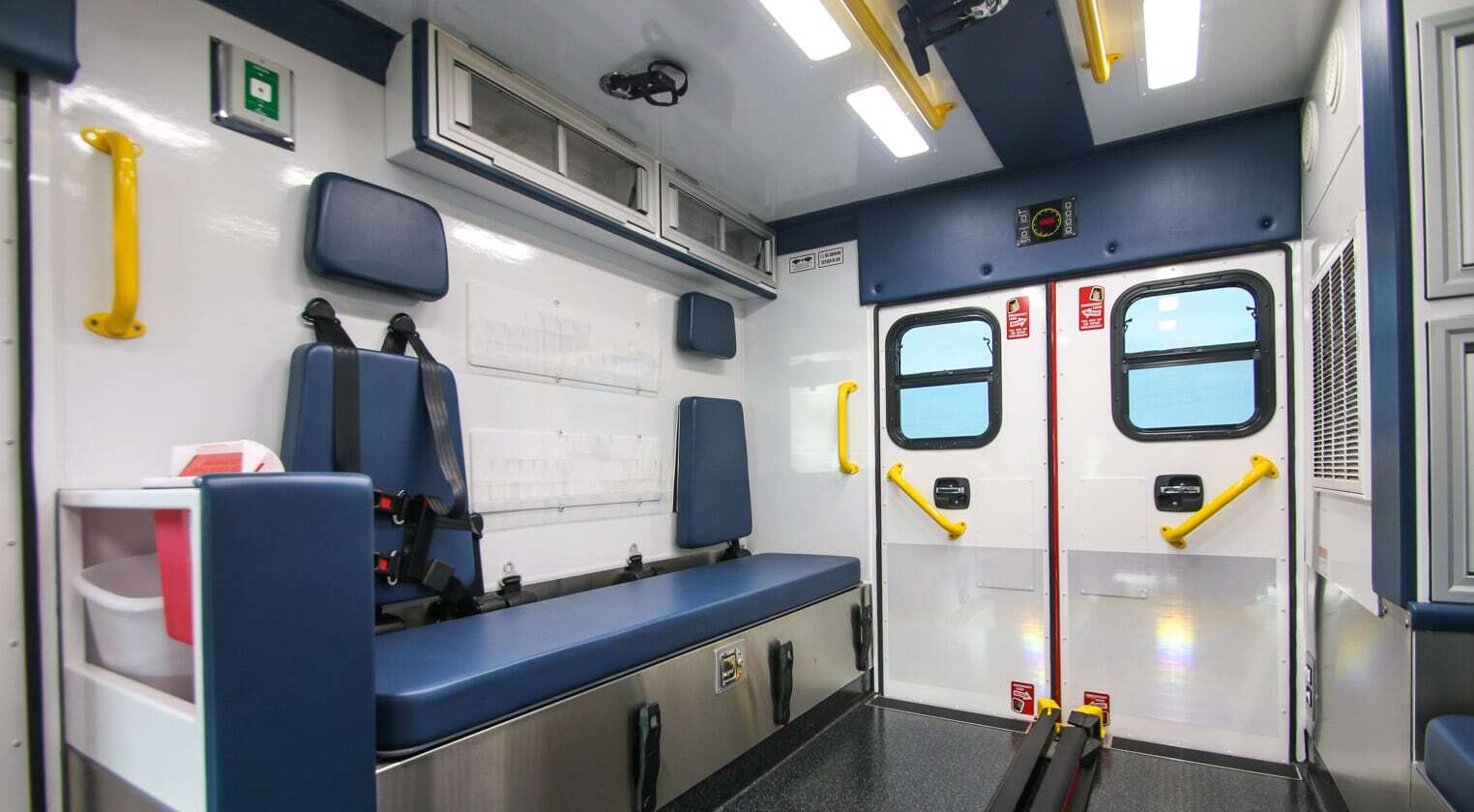

Inside the Type 3 module, everything is laid out for fast, efficient ALS care while keeping crews comfortable and safe. Strategic cabinet placement and generous aisle space keep critical gear within arm’s reach while leaving room to work around the patient.

Interior features include:

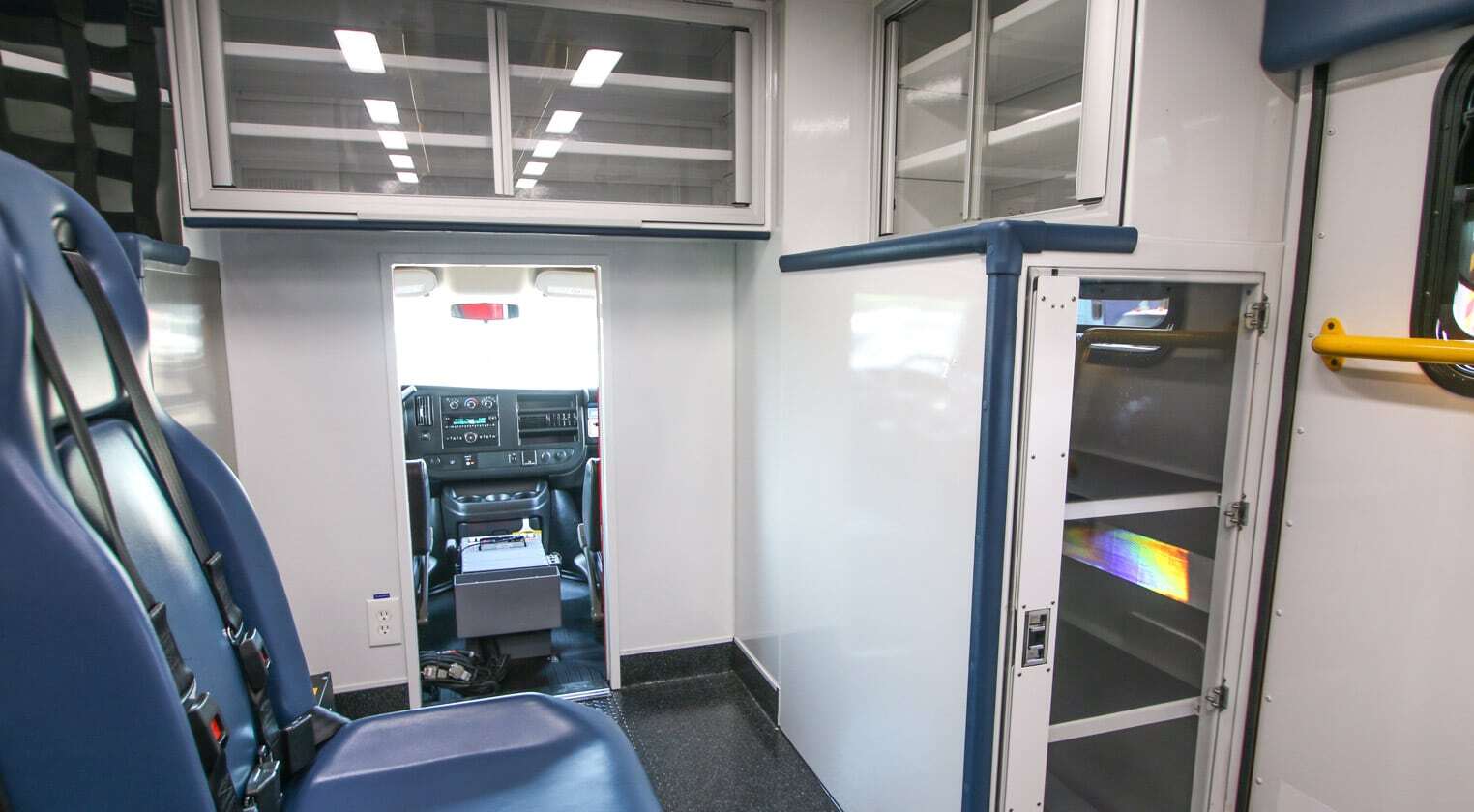

  • All-aluminum, powder-coated cabinets with 12″ depth
  • Scratch-resistant, shatter-proof polycarbonate cabinet doors with restocking feature

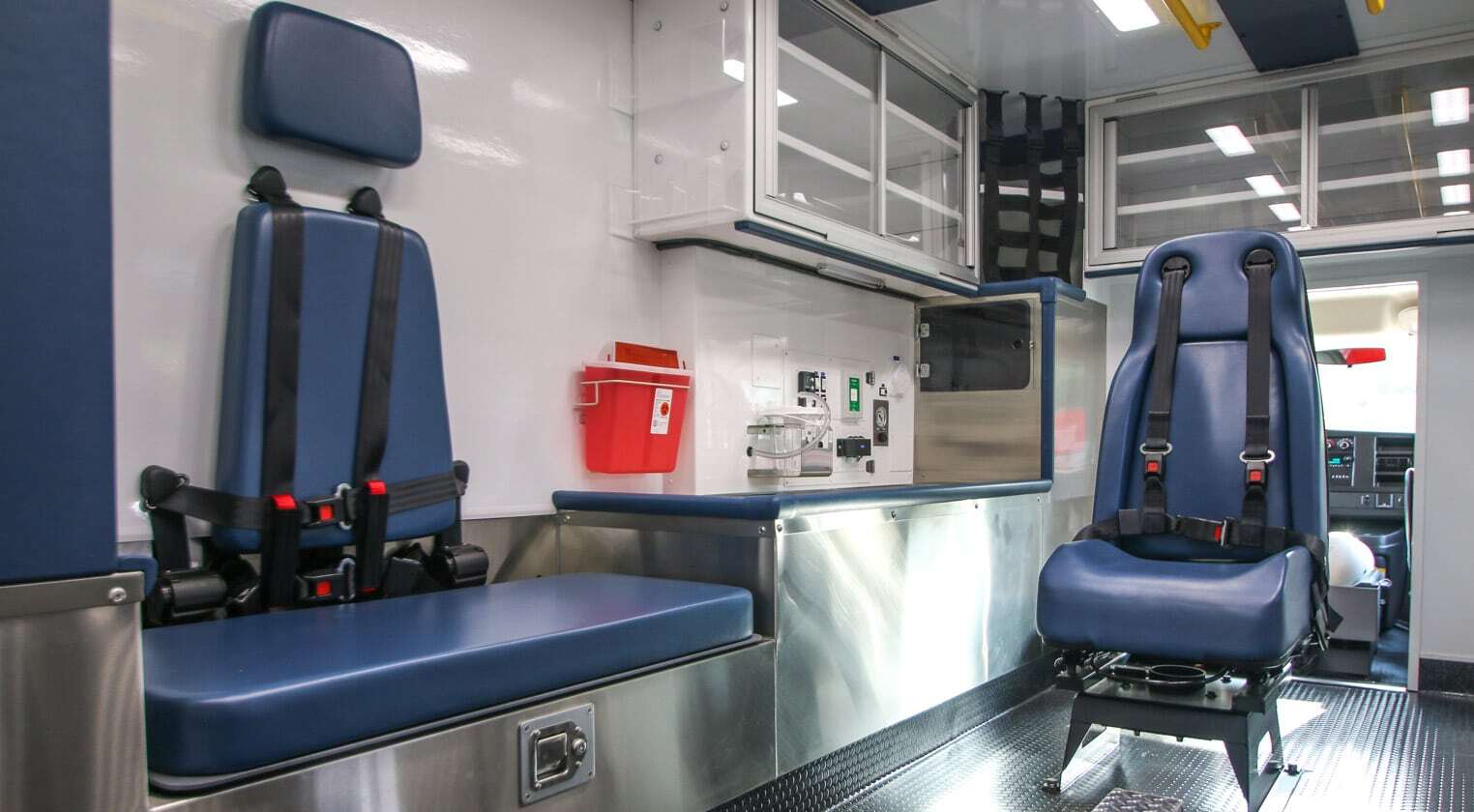

  • Seamless, vacuum-formed cushions secured with heavy-duty magnets
  • Bright white interior wall surfaces for a clean, clinical appearance
  • Vinyl flooring with laminated aluminum and polycarbonate subfloor
  • Center-mounted cot for optimal patient access
  • 3-part insulation system (radiant barrier, sound dampener, thermal layer) for comfort and noise reduction

On the 12 ft module, the interior is thoughtfully designed to allow up to six medics to comfortably care for a patient at one time, with cabinet layouts that support seated, belted work.

Independent Generator Power & Ultra-Powerful A/C

Every Frazer Type 3 EMS is built around an independent power system so the patient module doesn’t rely on the chassis alternator or battery. This improves reliability, reduces strain on the truck, and keeps critical systems running.

Power and HVAC highlights:

  • 120 VAC on-board generator for full, independent power to the module
  • 125 amp power supply (120VAC to 12VDC) with lifetime warranty
  • Automatic fail-safe system to maintain 12VDC power to the patient module during generator interruption
  • 30 amp shore power receptacle to run the air conditioner/heater in the station
  • Self-contained 120VAC air conditioner/heater with UV light and proven 35° temperature differential

This setup delivers ultra-powerful climate control and dependable electrical performance without unnecessary idling.

Rugged, All-Aluminum Exterior Construction

The Type 3 EMS module is engineered to be durable, serviceable, and easy to maintain. It features a completely wood-free structure with fully welded structural-grade aluminum tubing for long-term strength and corrosion resistance.

Exterior features include:

  • Completely wood-free module with fully welded aluminum frame
  • Steel shear plate mounting per chassis manufacturer’s instructions
  • Chrome automotive-style rotary latches on all entry and compartment doors
  • Horizontal storage for “H” or “M” oxygen cylinder at the front wall

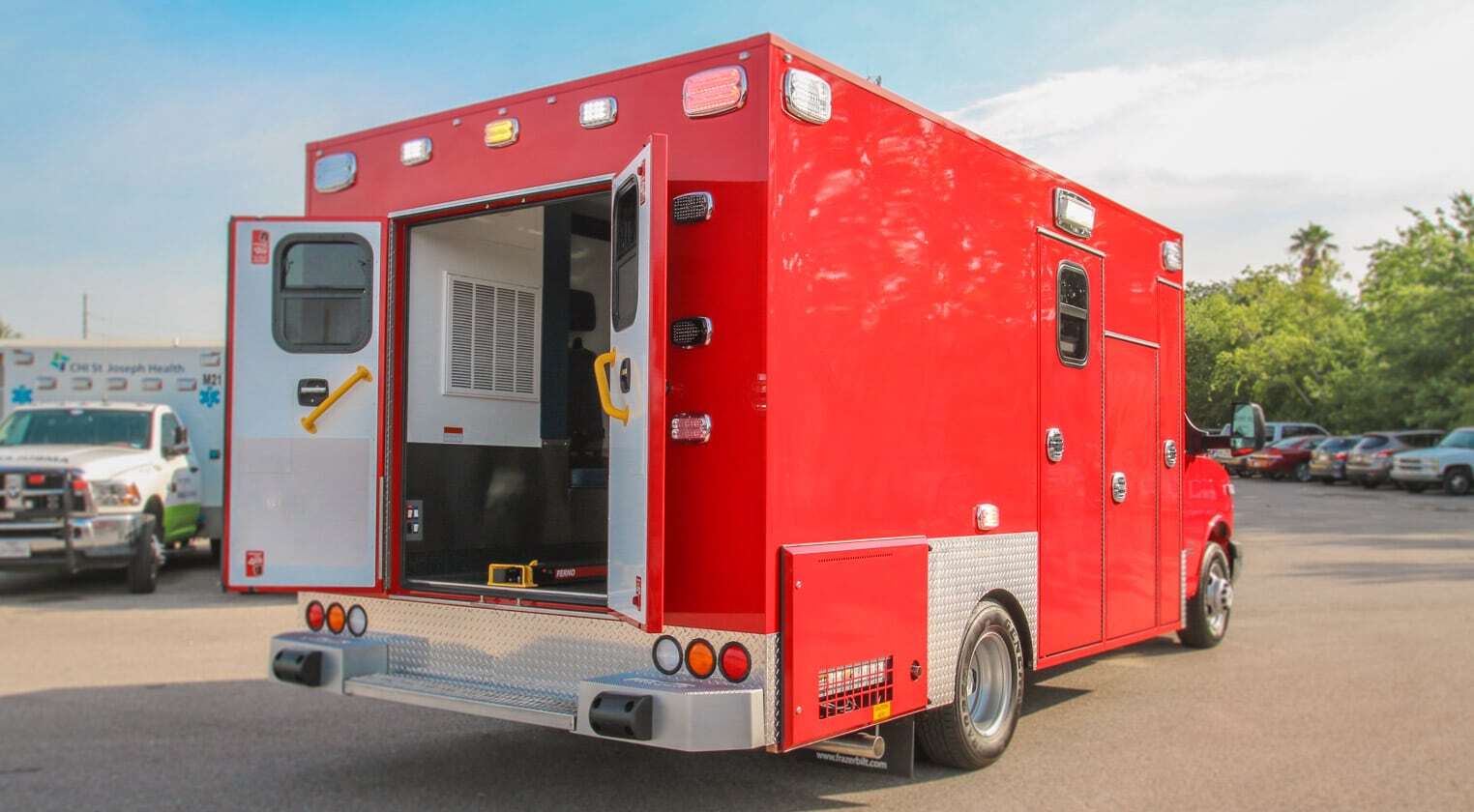

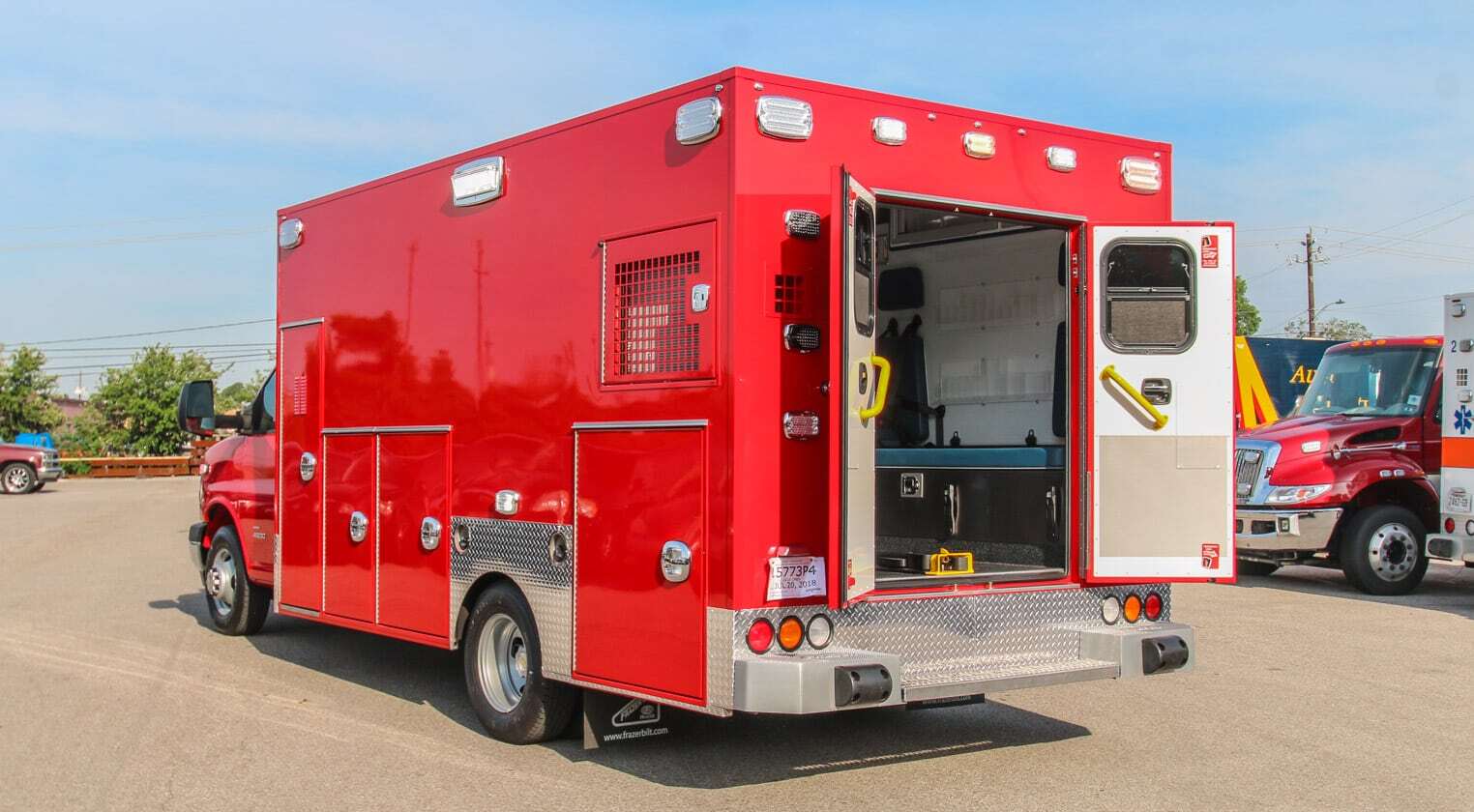

  • Three-section rear bumper with folding center section
  • Removable panels and latches on all exterior doors for easy service access
  • All-LED interior, compartment, emergency, and scene lighting

Serviceability is built in, with external compartments for electrical, air conditioning, and generator systems, plus center, transverse, and perimeter electrical raceways for total wiring access.

Flexible 12 ft & 14 ft Module Options

The Frazer Type 3 EMS is available in both 12 ft and 14 ft modules to match your call volume, crew size, and equipment demands.

12 ft Type 3 EMS Module – Compact & Highly Maneuverable

The 12 ft module is ideal for most EMS services that want a compact footprint without sacrificing interior space or storage.

  • Lower clearance and improved maneuverability
  • Efficient cabinet layouts for seated access
  • Multiple cot retention options
  • Optional 4″ taller headroom (71.5″ option)
  • Plenty of interior space for ALS gear and life-saving equipment

Standard 12 ft dimensions:

  • Exterior: 144″ L x 96.25″ W x 88″ H
  • Headroom: 67.5″ (71.5″ option available)
  • Aisle width: 49.75″

Available chassis: Chevrolet, Ford
Fuel: Gasoline
Air suspension: Optional

14 ft Type 3 EMS Module – Maximum Space & Storage

The 14 ft module is designed for agencies that need more room for equipment, larger crews, and extended operations.

  • Larger patient compartment for easier movement around the cot
  • Stacked front cabinet options
  • Forward backboard compartment
  • Door-forward option
  • Secondary captain’s chair option
  • Additional driver’s side compartment for more exterior storage

Standard 14 ft dimensions:

  • Exterior: 168″ L x 96.25″ W x 92″ H
  • Headroom: 71.5″
  • Aisle width: 49.75″

Available chassis: Chevrolet, Ford, Freightliner
Fuel: Gasoline
Air suspension: Standard

Key Specs

  • Product: Frazer Type 3 EMS Ambulance
  • Vehicle type: Custom EMS module on cutaway van chassis
  • Module lengths: 12 ft and 14 ft
  • 12 ft exterior: 144″ L x 96.25″ W x 88″ H
  • 14 ft exterior: 168″ L x 96.25″ W x 92″ H
  • Headroom: 67.5″ (71.5″ option) on 12 ft; 71.5″ on 14 ft
  • Aisle width: 49.75″ (both modules)
  • Chassis options (12 ft): Chevrolet, Ford (gasoline)
  • Chassis options (14 ft): Chevrolet, Ford, Freightliner (gasoline)
  • Air suspension: Optional on 12 ft, standard on 14 ft
  • Construction: Fully welded, wood-free, structural-grade aluminum module
  • Interior: All-aluminum powder-coated cabinets, polycarbonate doors, vinyl flooring, 3-part insulation
  • HVAC: Self-contained 120VAC A/C and heater with UV light, 35° temperature differential
  • Power: 120 VAC on-board generator, 125 amp power supply (120VAC to 12VDC), automatic fail-safe, 30 amp shore power
  • Lighting: All-LED interior, compartment, emergency, and scene lighting

This Frazer Type 3 EMS ambulance combines maneuverable van chassis performance with a rugged all-aluminum module, independent generator power, and a spacious, efficient interior-built to handle real-world ALS and rescue operations every shift.

If you aren’t sure which rig is right for you check out our blog post on: Choosing the Right Rig
