Bracket Pro Serie® 25 – SAE J3043-Certified Mount for ZOLL® X Series® Monitor/Defibrillator

The Bracket Pro Serie® 25 is engineered to securely mount the ZOLL® X Series® monitor/defibrillator in demanding EMS, hospital, clinic, and military environments. With a lightweight, high-density aluminum design and SAE J3043 certification, it keeps your device locked in place while giving crews fast, flexible access when every second matters.

Secure Mounting for Critical Care Transport

This mounting system is built to keep the ZOLL X Series exactly where it belongs during sudden stops, sharp turns, turbulence, or impacts. By preventing the monitor from becoming a projectile, it helps protect both patients and crew while reducing the risk of costly equipment damage or replacement.

Built for EMS, Hospital, and Military Environments

The Bracket Pro Serie 25 is ideal for use in ground ambulances, air medical units, hospital bays, and military medical vehicles. It integrates easily into existing setups and supports standardized use across multiple platforms, helping teams work more efficiently with familiar mounting hardware wherever they go.

Flexible Rotation & Fast Access

When used with the Technimount Standard Surface Base, the Bracket Pro Serie 25 allows 360° rotation with a secure locking mechanism, so clinicians can position the monitor for optimal visibility and access. With the Extended Surface Base, it offers 15° tilt to both sides with locking capability. A quick-release mechanism allows crews to deploy the ZOLL X Series monitor/defibrillator in one smooth motion with minimal effort in emergencies.

Durable, Lightweight Construction

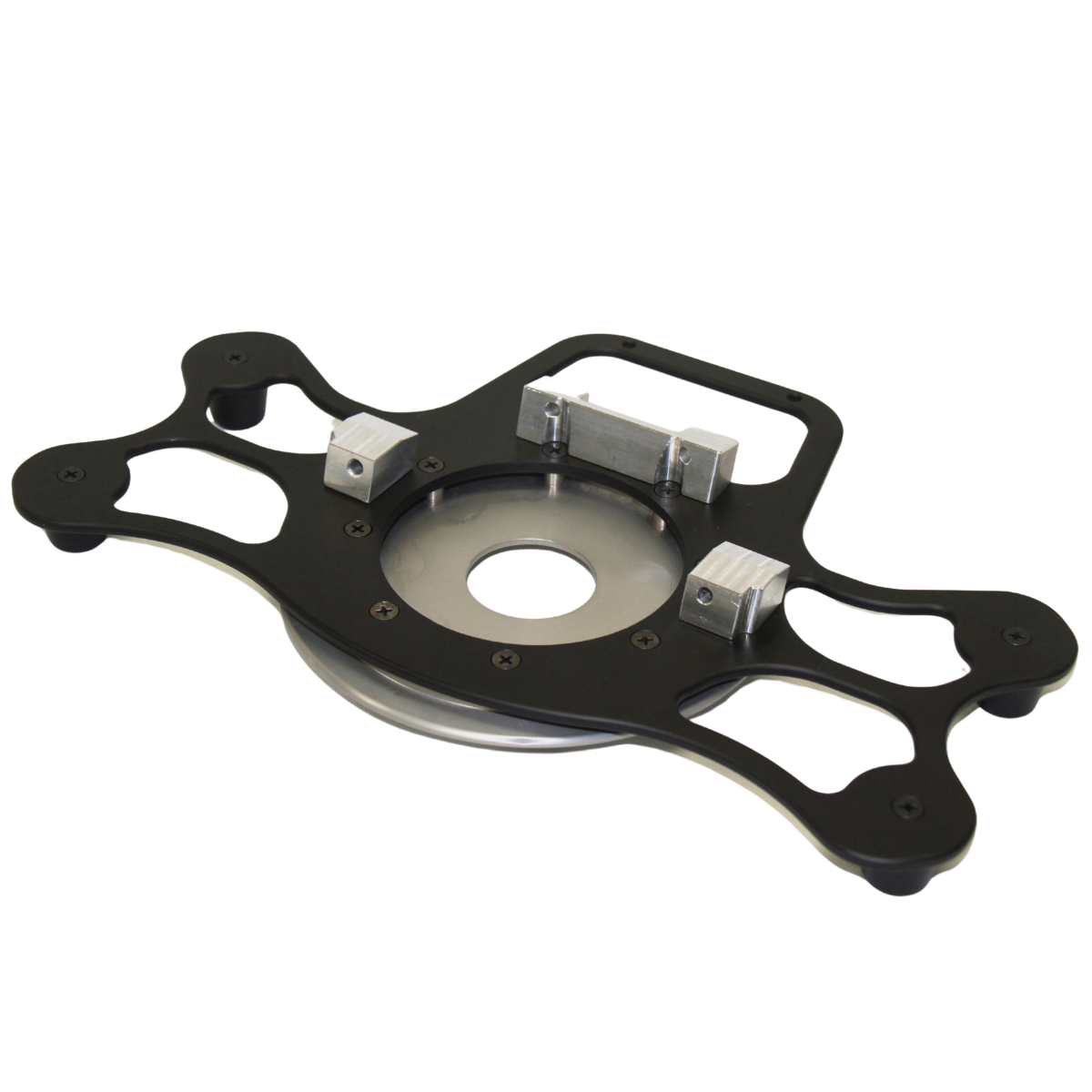

The device section is built from high-density aluminum with a silver anodized finish, making it resistant to biological fluids and sodium/soft acids while remaining compact and lightweight. The disc section combines a stainless steel insert with acetal cushions to provide smooth motion and impact resistance. CNC mechanical precision and a unique serial number on each product help ensure consistent quality and traceability across your fleet.

Easy Integration & Full Access to Device

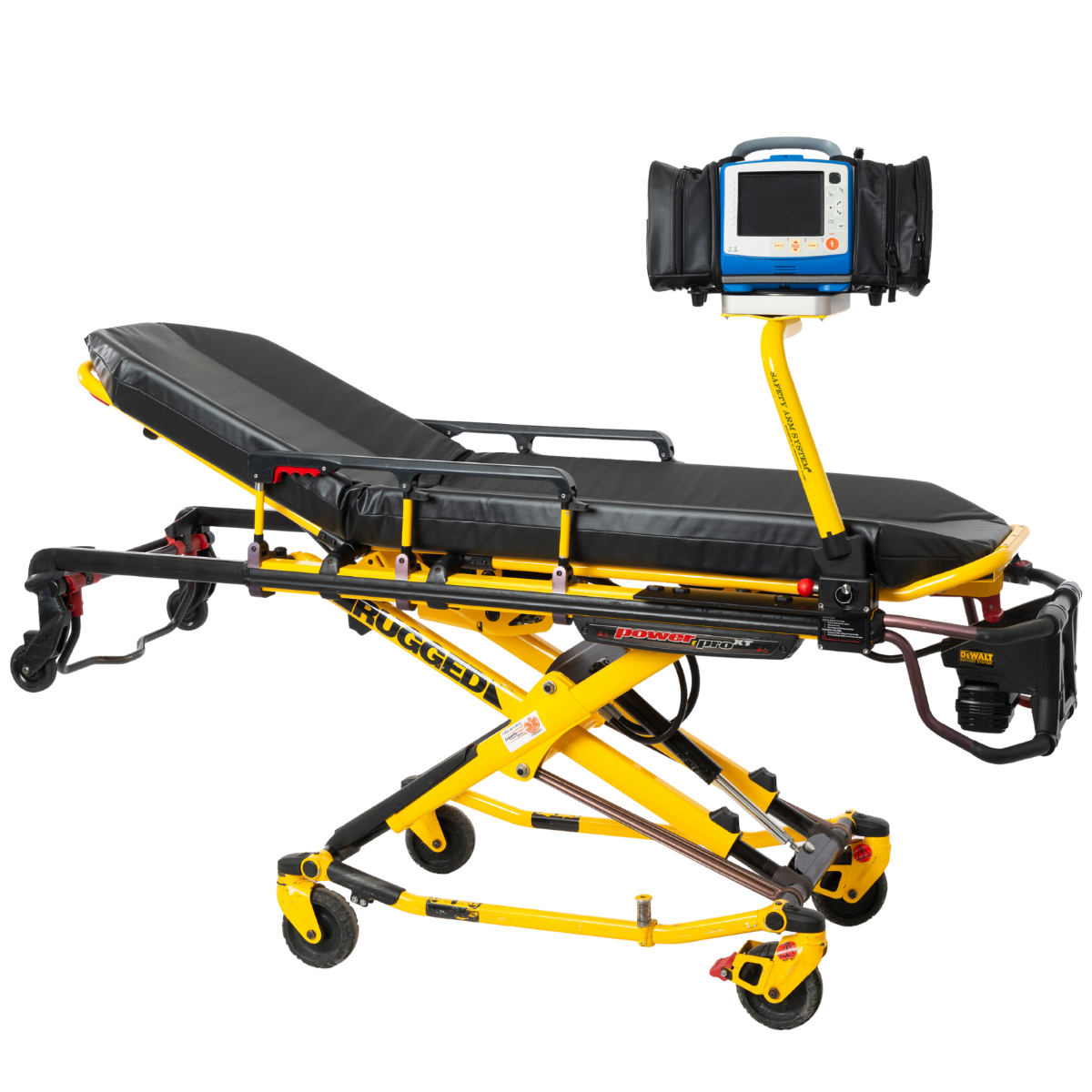

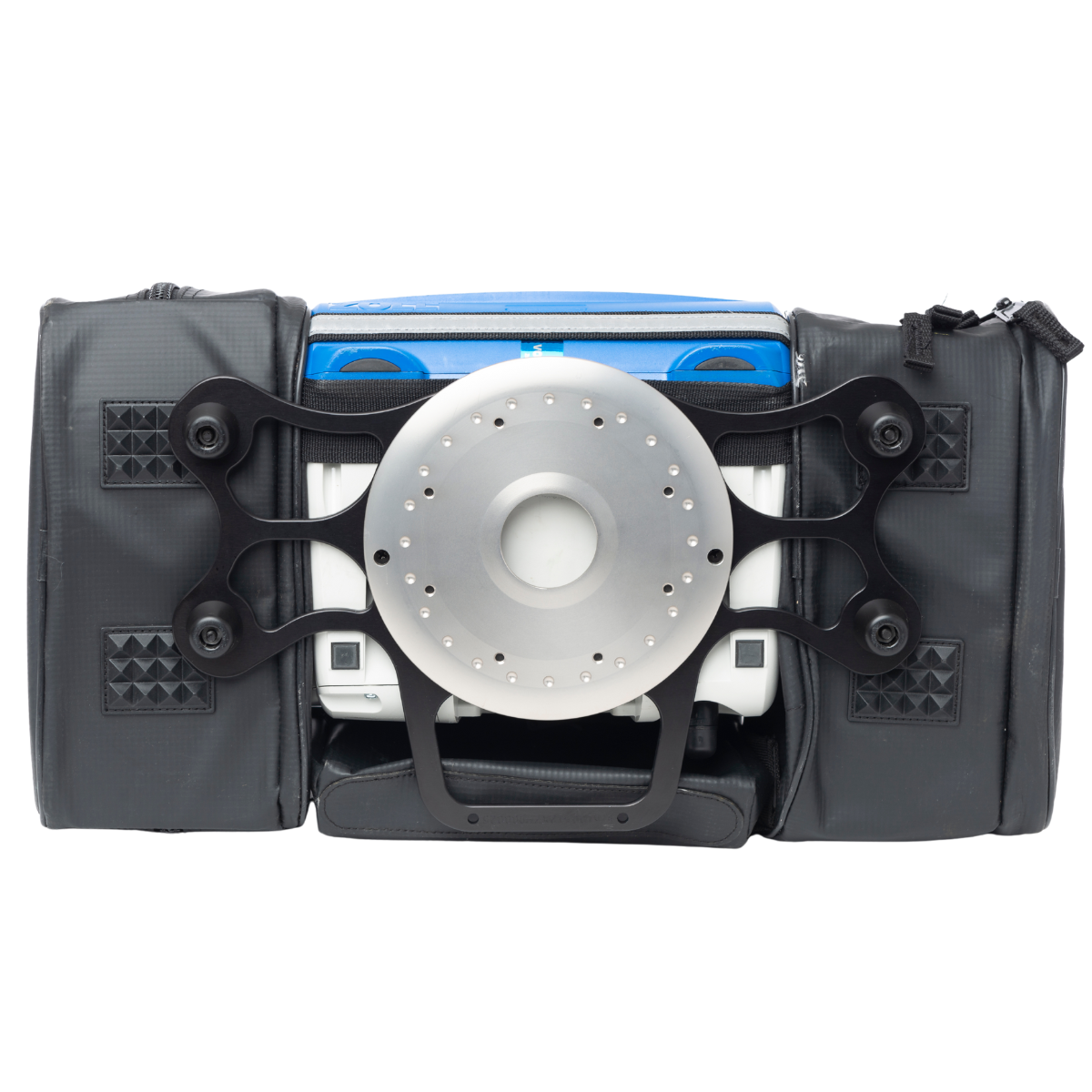

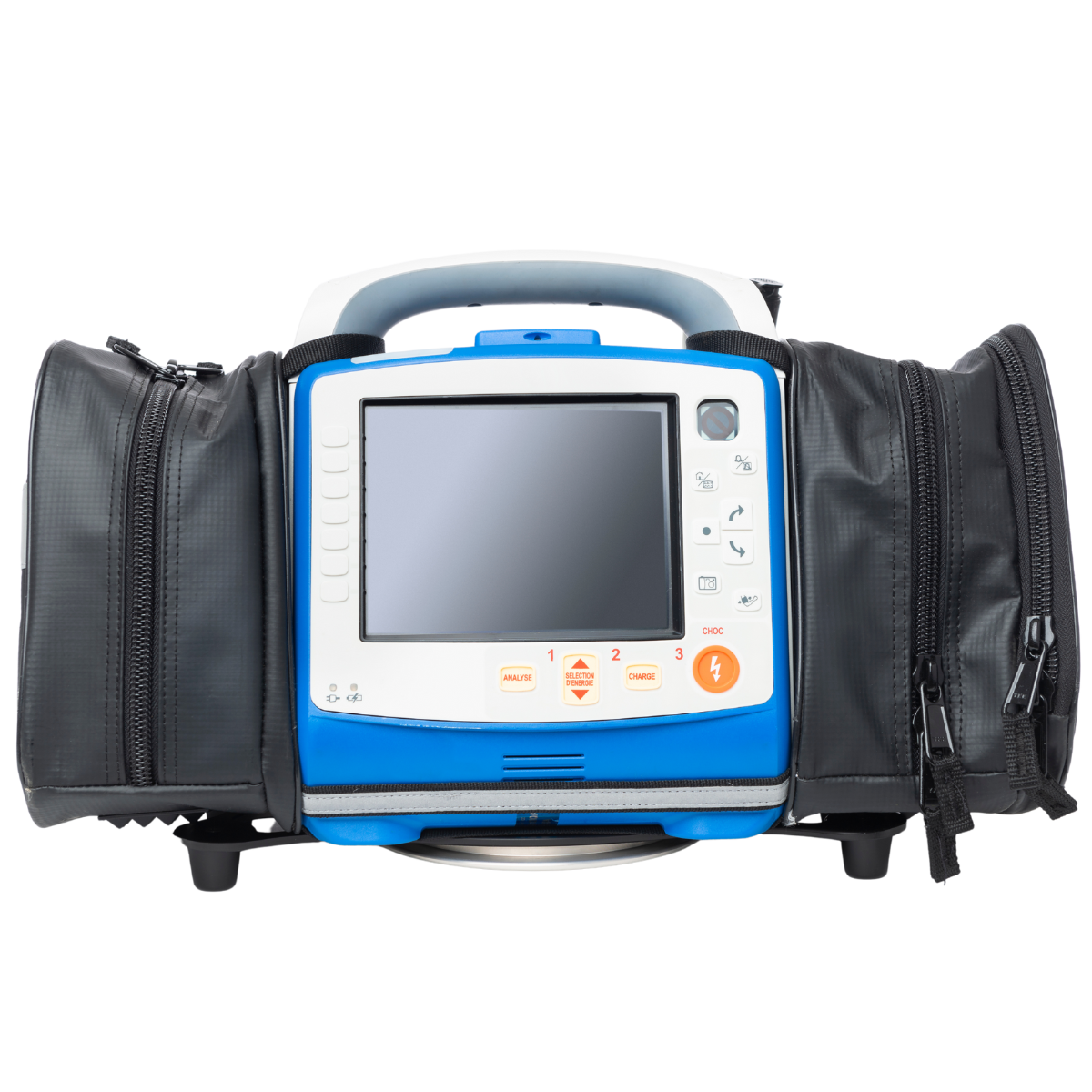

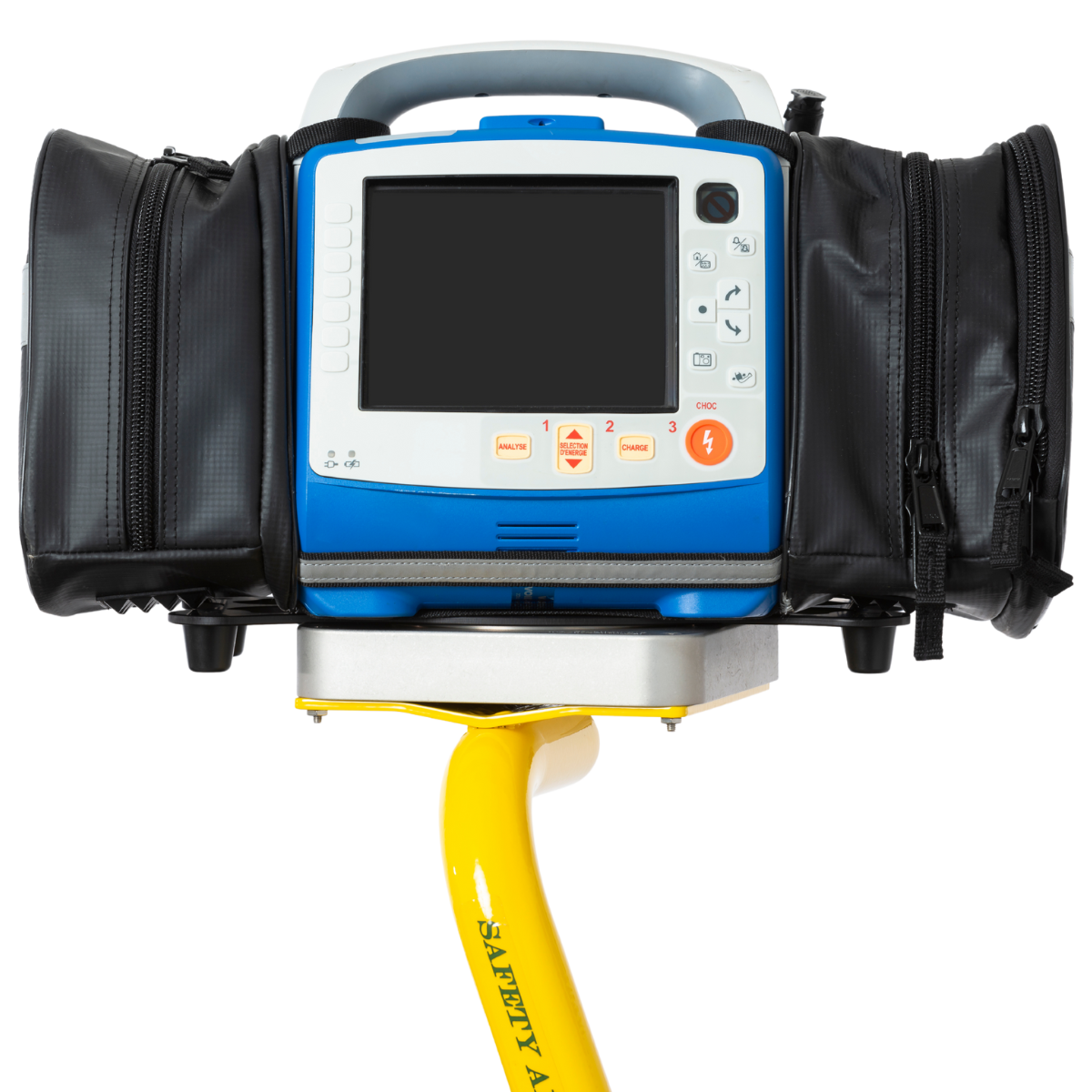

The Bracket Pro Serie 25 is designed to work with or without the ZOLL X Series carrying case protector. It is compatible with Technimount’s Standard and Extended Surface Bases as well as the Technimount Stretcher Safety Arm System. The open design maintains free access to all connectors, accessories, and top/back pouches so clinicians can connect cables, adjust settings, and grab accessories without removing the device from the mount.

Safety & Certification

Tested to withstand 30 G impacts plus a 10% safety factor and certified to SAE J3043 recommended practice for ambulance equipment mount devices, the Bracket Pro Serie 25 is built to meet modern safety standards for air and ground transport. By pairing robust engineering with proven certification, it supports safer operations and more reliable transport of critical monitoring equipment.

Key Specs

  • Product name: Bracket Pro Serie® 25
  • Compatible device: ZOLL® X Series® monitor/defibrillator
  • Environments: EMS, clinic, hospital, military
  • Device section material: High-density aluminum, silver anodized finish
  • Disc section material: Stainless steel insert with acetal cushions
  • Operating temperature: -35 °C to +45 °C (direct conduction)
  • Impact resistance: 30 G plus 10% safety factor, SAE J3043 certified (CRIQ Ref: 48064)
  • Installation points: 4 on device mount, 4 on surface base
  • Product size: Width 13-1/4 in, Depth 9-3/8 in, Thickness 1-1/4 in
  • Rotation (Standard Surface Base): 360° with locking mechanism
  • Rotation (Extended Surface Base): 15° to both sides with locking mechanism
  • Weight: Total (2 parts) 3.35 lb; device section 1.27 lb
  • Fits with/without carrying case: Yes
  • Compatibility: Technimount Standard and Extended Surface Bases, Technimount Stretcher Safety Arm System
  • Complete assembly (base & bracket): Part number 100-00-XZ (with bags)
  • Optional bracket-only models:
    • 100-10-XZ (Standard)
    • 100-11-XZ-WOB (Without Bag)
    • 100-12-XZ-HD (Heavy Duty Version)
    • 100-13-XZ-FX (Flexible System)
